Peered Rafiki Instances Architecture

This guide provides an architectural overview of a reference deployment where:

• Account Servicing Entity A (ASE A) runs the Test Wallet from github.com/interledger/testnet and its own Rafiki instance.
• Account Servicing Entity B (ASE B) runs the Interledger App Wallet (container images are available from ghcr.io/interledger) and its own Rafiki instance.
• Both ASEs deploy to Kubernetes clusters (on any cloud provider) using the public Interledger Helm charts served from https://interledger.github.io/charts/interledger.
• The two Rafiki instances are peered, enabling their users to send Interledger payments between ASE A and ASE B.

Components

Each ASE deployment consists of:

• Rafiki Layer:
  • auth – Open Payments authorization server.
  • backend – Open Payments resource server and ILP connector.
  • frontend – Rafiki Admin UI.
• Wallet (Integrator) Layer:
  • Wallet backend – Integrates with Rafiki via Open Payments APIs.
  • Wallet frontend – User-facing web app.
• Data stores:
  • PostgreSQL – Open Payments resources and wallet addresses database.
  • Redis – Caching and session management.
  • TigerBeetle – High-performance accounting database for Rafiki.
• Ingress / DNS:
  • Kubernetes Ingress exposes Rafiki and wallet HTTP endpoints with TLS.
  • Public DNS records point to the ingress IPs or load balancer hostnames.

High-level topology

The deployment uses two independent Kubernetes clusters, one per ASE. Each cluster can be deployed on any cloud provider (AWS EKS, Google GKE, Azure AKS) or on-premises:

• Kubernetes Cluster A (for example, ase-a-cluster):
  • Namespace rafiki-ase-a (Rafiki Layer)
  • Namespace wallet-ase-a (Test Wallet Layer)
• Kubernetes Cluster B (for example, ase-b-cluster):
  • Namespace rafiki-ase-b (Rafiki Layer)
  • Namespace wallet-ase-b (Interledger App Wallet Layer)

Each cluster has:

• A Rafiki instance fronted by an HTTPS ingress (Open Payments + Admin + Auth endpoints).
• A wallet app fronted by an HTTPS ingress (user-facing web app + API).
• Private services for databases, Redis, and Rafiki connector endpoints.
• ILP Peering connection between the two Rafiki backend connectors.

Architecture diagram

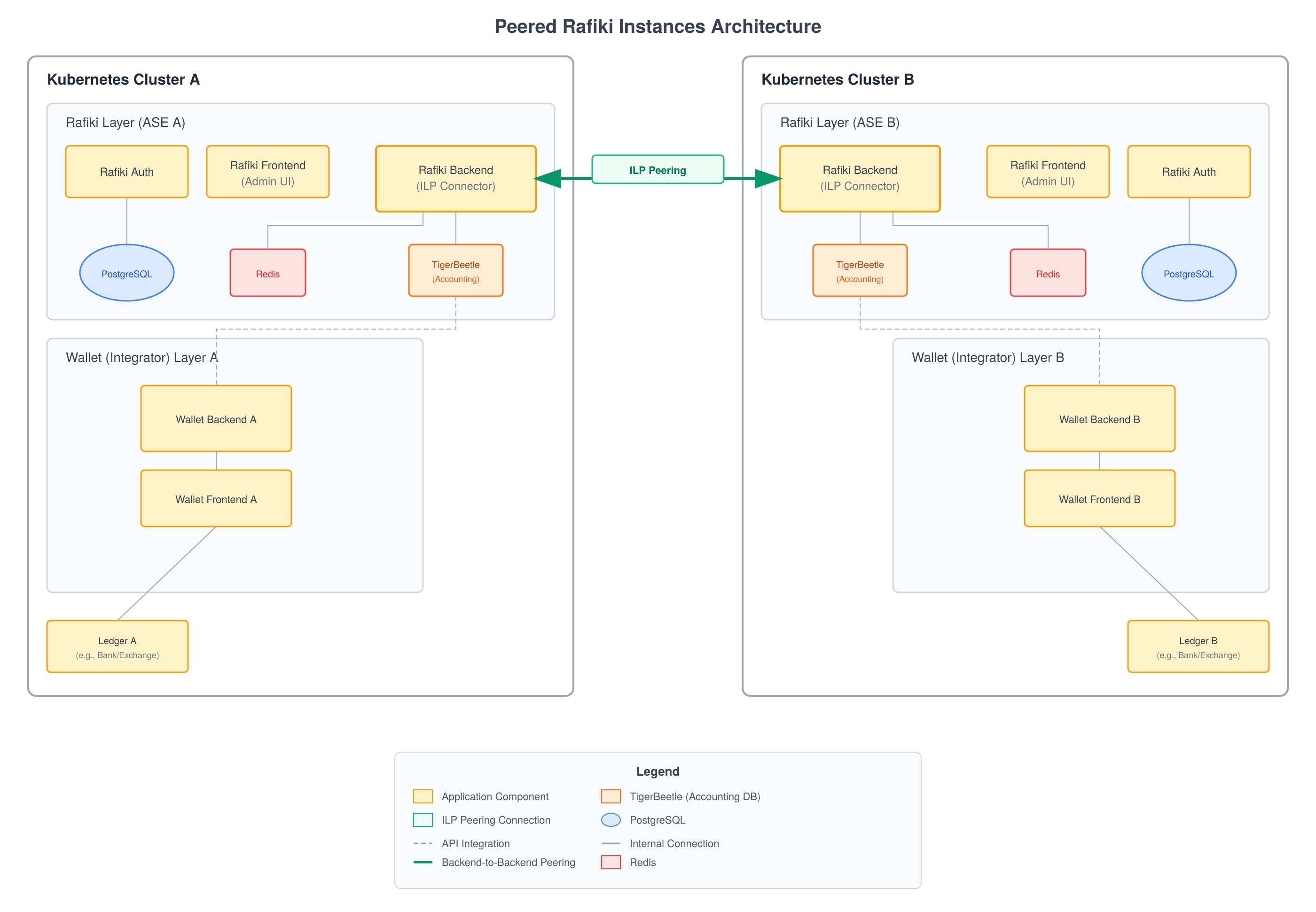

The following diagram shows the major components and how they interact:

View full image

Helm charts and Git repositories

• Public Helm repository:

  helm repo add interledger-helm https://interledger.github.io/charts/interledger
  helm repo update

  Charts used:

  • interledger-helm/rafiki – Rafiki instance (auth, backend, frontend)
  • interledger-helm/testnet-wallet – Example wallet implementation
  • interledger-helm/ilf-wallet-backend – Interledger App wallet backend
  • interledger-helm/ilf-wallet-frontend – Interledger App wallet frontend
  • interledger-helm/ilf-wallet-admin – Interledger App wallet admin

• Git repositories:

  • Rafiki: github.com/interledger/rafiki
  • Testnet Wallet: github.com/interledger/testnet
  • Helm charts: github.com/interledger/charts

Note

The Interledger App Wallet git repository is not publicly accessible. Integrators should obtain the referenced Helm charts from https://interledger.github.io/charts/interledger where they are publicly served from.

Next steps

• Deploy ASE A (Rafiki + Test Wallet): refer to Deploy ASE A using Test Wallet.
• Deploy ASE B (Rafiki + Interledger App Wallet): refer to Deploy ASE B using Interledger App Wallet.
• Peer the Rafiki instances to enable Interledger payments: refer to Peer ASE A and ASE B.
